[Konvas] Kinor 35 Batteries

[Sean McVeigh]

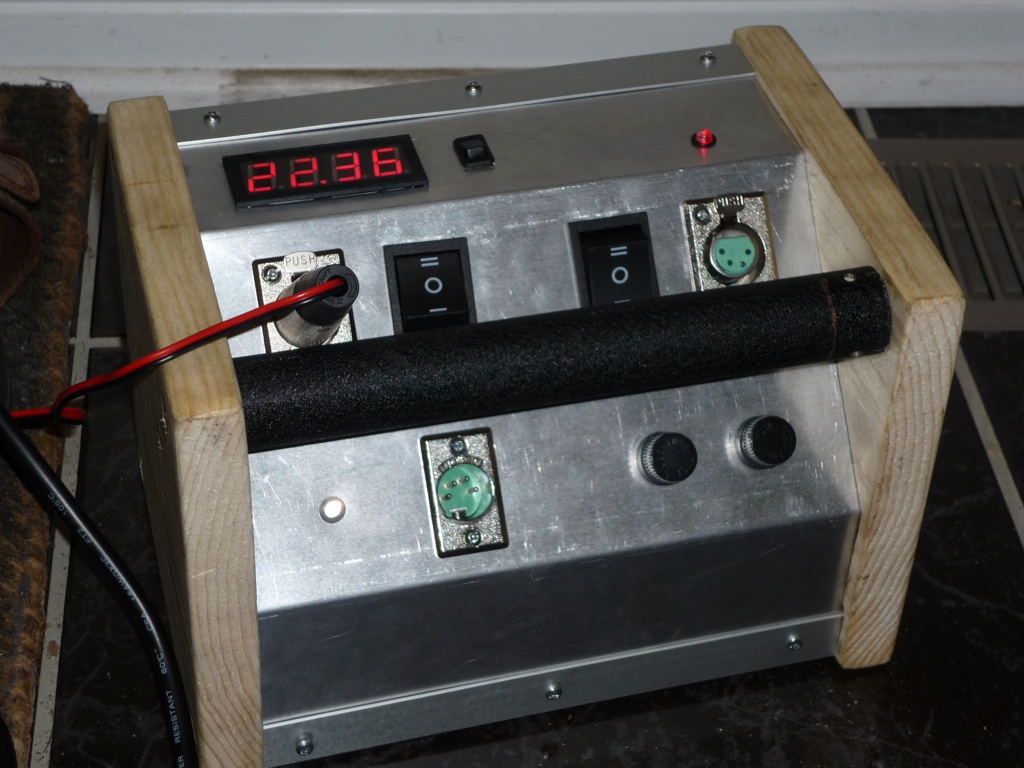

I've built a 10AH 18/12V d-pack-type battery: http://www.smallpony.ca/battery.jpg

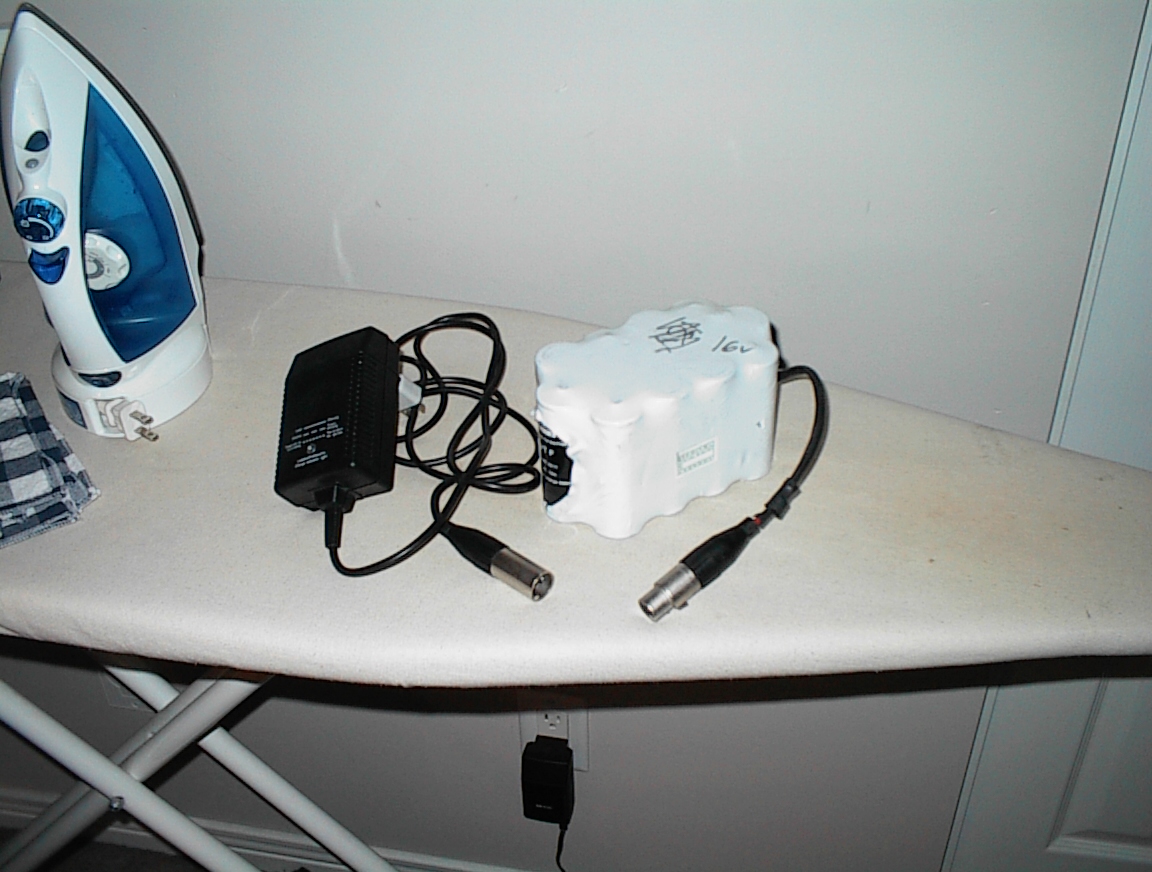

and I also have a 7AH 15.6V pack that I don't use anymore: http://www.smallpony.ca/forsale/battery.jpg
It's made up of 13 NiCD F-cells (these sell for about $15 apiece) .
The charger and 15.6v battery can be yours for $100.. iron not
included.  the battery hasn't seen much use.  Actually, I'm probably
going to sell off the remainder of my 35H gear shortly.

Replacing the power connector with an XLR one is pretty simple.. I
think there's a howto floating around:
http://www.lomoscope.com/xlr_how_to-Pages/xlr_005.html
I also replaced the tiny russian fuse socket with a more standard 1/4"
one on my camera.

The Kinor 35 should run on anything between about 14 and 21V.

Cheers,
Sean


On 21-Feb-09, at 4:22 PM, Kelley Cross wrote:

> Hi Everyone,
>
> Forgive me if this has been covered ad nauseam, but I’ve searched
> the threads and have only been able to glean bits and snatches of
> data.
>
> I have two Kinor 35’s and am addressing these battery issues:
>
> Has anyone successfully found or made a compact 16v NiCd
> rechargeable pack that would resemble a cinema pack—i.e. without
> using any duct tape or a Night Rider lunch box?
>
> Is there a thread someone could direct me to as to how an XLR
> modification can be made on the camera for the power source?
>
> Is it wise to exceed 15.6v (13 x 1.2v) to say possibly 16.8v (14 x
> 1.2v) ?
>
> Again, sorry if this topic has been beat to death, but I just can’t
> seem to locate the appropriate threads.
>
> Best,
> Kelley Cross
> _______________________________________________
> Cinema mailing list
> Cinema at konvas.org
> http://konvas.org - All about Konvas, Kinor and other Russian Cinema
> Cameras
>
> Be sure to Check out the online Forums:
> http://konvas.org/forum/index.php
>
> Visit the discussion archives:
> http://konvas.org/list-archives.html
>
> Join the Konvas Discussion List:
> http://konvas.org/mailman/listinfo/cinema_konvas.org
>
> Please be kind when replying and crop the replied message!!!
